Apex Overland OVERLANDER Suspension Package - Tacoma (05-23)

SKU 92589
$3,349.99
Our best selling set up! (Includes Install)
Vehicle
Please choose
Front Lift Height
Additional Front Weight In Near Future?
Please choose
Rear Lift Option
Please choose
Upper Control Arms
Please choose
Front Bumpstops
Rear Ubolts & Bump Stops
Apex Overland Installation?
Lighting Options
Add Tires? (only can apply to Apex Overland Installation)( due to supply chain issues, if your choice isn't available we will contact you for alternative)
Please choose
Add Additional Mods?
1
Product Details
Vehicle: 2005-2023 Tacoma

The Apex Overland Overlander Package is designed for those just getting into the hobby of overland and off-road and need a one stop shop for their:

2005-2015, 2016-2023 Tacoma

Apex Overland also offers expert installation for all of our packages. For those not local to Apex Overland, we offer package discounts and can ship to your door! Just contact us and we can help you plan your build

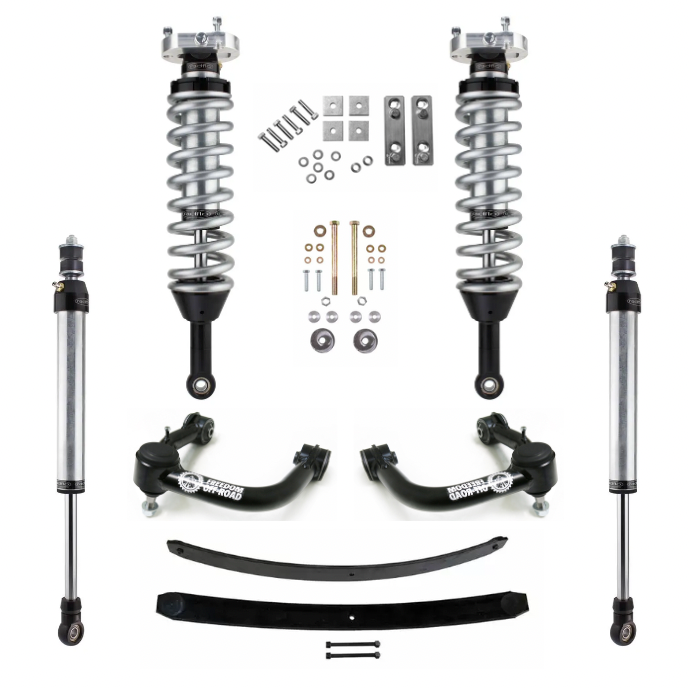

Our OVERLANDER System will include the Radflo Suspensions 2.0 Shock system paired with Freedom Upper control arms, with optional upgrades/add-ons:

  • the Radflo Suspension 2.0 system paired with Upper control arms:Front Lift/Coilovers:
    • Radflo 2.0" Diameter Front Coilover Kit
      • All Radflo OE Replacement Shocks are custom built-to-order in the USA, and uniquely valved to meet you and your vehicle's unique needs and specifications.
      • Front Coilovers are adjustable from 0-2" of lift, and extended travel are adjustable 0-2.5"
      • Nitrogen charged design with internal floating piston to help prevent shock fading and cavitation.
      • Anodized Aluminum Material and Finish
      • Shocks are fully rebuildable and factory serviceable
      • The kit includes sway bar relocation brackets
      • Also Included: Front Differential Drop kit - Recommended for all lifted 4x4s

Front Bump Stop Option:

  • DuroBumps are proudly made in the USA with dual durometer (hardness) rubber that provides smooth progressive dampening and greatly reduces hard bottom outs. This allows for more control and comfort compared to OEM bump stops that are harsh on contact. With DuroBumps installed, the shell-shock effect experienced when hitting the OEM bump stops is completely eliminated.

Ubolts: Includes standard 7.5" ubolts

Rear Bump Stops:

  • 0-2" of lift, no bump stop drop needed
  • 3" of lift - Rear Bump Stop Extension kit - 43007 - Recommended for use with add-a-leafs or complete leaf spring packs, these will allow your factory rear bump stops to function with the lift. (*Requires drilling 2 holes per side).
  • Durobumps - Tacoma rear bump stops eliminate the shell shock effect we’re all familiar with when hitting OEM bump stops. Our dual durometer bump stops easily absorb hard impacts and help keep the vehicle stable at higher speeds in rough conditions. The 4.25″ rear bump stop is intended for trucks with a rear lift of 2″ and extended shocks of up to 1″. These bump stops have been designed to stop wheel up travel under articulation prior to extended shocks bottoming out. Can be used with or without the Ubolt flip kit.

Rear Lift Options:

  • Toytec Add-A-Leafs. - Approximately 1.5-2" lift. This long style AAL offers a great ride and has anti-friction pads already installed. Fits standard 3 leaf springs and 4 leaf or TSB springs.
  • Toytec Progressive Leaf Pack - Designed and produced to the highest standards. Spring retaining clamps on both ends keeps the pack centered.Anti-friction pads on both ends reduce any noises.This is the best riding AAL on the market.**Use with your stock overload for about 2.5” of rear lift and extra rear weight. May be used without the factory overload for best ride quality and about 2” of rear lift. **
  • Dobinsons Full Leaf Pack Replacement (for heavier duty loads and gear)
    • L59-110-R - (55mm/2.1") Up to 220lb Load
    • L59-111-R - (55mm/2.1") 600lb Load (Consider upgrading to the overlander plus package for heavier loads)
    • L59-112-R - (55mm/2.1") 800lb Load (Consider upgrading to the overlander plus package for heavier loads)

Rear Shocks:

  • Radflo 2.0" Diameter rear shocks with Internal Floating Piston
    • Shock bodies are hard-anodized aluminum for cooler operation and longer lasting in the elements.
    • Self Adjusting valving
    • Nitrogen charged

Upper Control Arms to complete your kit:

  • Freedom Offroad Upper Control Arms - heavy duty oem style ball joints and hardened rubber bushings
  • Total Chaos Urethane Bushing PIvot Uniball UCA - designed to add 3 degrees of caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC UCA's are designed to provide 1'' of added droop wheel travel when they are installed with a pair of factory replacement ''extended travel'' coil over shocks.

Lighting Options

CaliRaised Low Pro Ditch-light Package with Install
Baja Designs SAE Fog Lights with Install (4Runner, Tacoma Only)

Additional Options

Front High Clearance Cut
Rad Rubber Engine Splash Guards
Factor 55 Hitchlink 2.0
Maxtrax (Color options vary)
Snorkel (Dobinsons) 16+ Tacoma
