Bud Built | Step Sliders | 2008-2021 Land Cruiser
SKU 91145
$1,284.00
Built to Order
Fill Plate Design
Powder Coating
Custom color:
Enter your text
Out of stock at our main facility, available for back-order and may ship from alternate warehouse or from the manufacturer
1
Product Details
Made in:
USA
Brand:
Budbuilt
Lead Time (Contact us if you have questions):
Varies, typically 2-8 weeks
Product Description
(2008-2021)

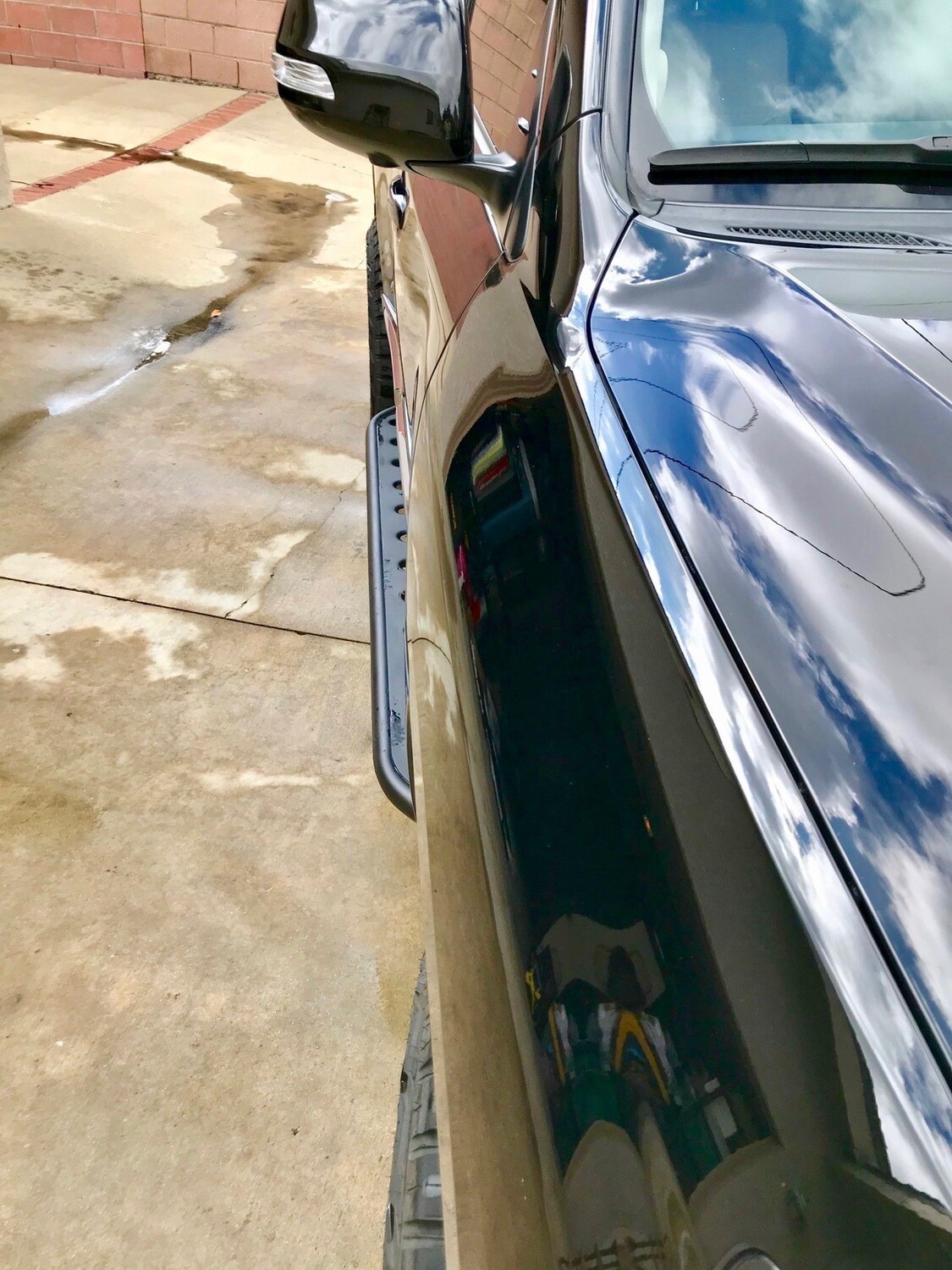

Land Cruiser 200 Series Bolt-On Step Sliders
With a 0° offset outer tube, our Step Sliders offers a superb entry and exit step for the driver and passengers, while offering the incredible strength and protection of a true BudBuilt rock slider.
Defending the most vulnerable areas of your Land Cruiser, BudBuilt sliders are engineered to protect both rocker panel and frame alike. As with all BudBuilt products, our sliders are CAD designed by mechanical engineers, with specialties in material science and failure analysis. Combining formal education with decades of engineering and hard-core rock crawling experience, BudBuilt has the proven edge to make products the best they can be.
BudBuilt sliders begin with the strongest foundation in the industry, 3/8" thick, solid steel plate that running the entire height of the frame rail. This foundation works in conjunction with additional 3/8" plates that mount on the back and inside of the frame rail. A combination of massive 5/8" and 3/4" grade 8 hardware "sandwich" the outer and inner 3/8" plates to the Land Cruiser's frame, with additional M8 10.9 grade metric hardware securing to existing captive nuts. This industry exclusive design provides an absolutely rock solid surface for the sliders to be built on. We have seen too many frames buckled inward from other sliders that do not distribute a Toyota's crushing load appropriately.
Six (6) 1.75" .120 steel legs with additional reinforcing gussets and an industry exclusive triangulated legs arrangement solidly mounts the frame plate to the main tube. We choose this design for its superior strength qualities over three (3) leg designs, regardless of round of square tubing. Our main tube is constructed of 2" .120 steel tube, providing a rock solid, smooth sliding surface. Continuing from the main tube, the outer tube is constructed of 1.75" .120 steel tube with smooth angles to stand up to constant abuse and not hang up on rocks. Four (4) additional reinforcement 1.5" .120 steel tube legs tie the main and outer tubes together, creating a total of six (6) connecting points. This design further increases rigidity and strength across the entire slider. Total distance from the Land Cruisers's frame to the outer tube is 16".
- BudBuilt sliders are designed and manufactured in house from pure American steel. We will never use lower grade Chinese or Indian raw materials
- 100% bolt on, no drilling, no welding, no failure prone riv-nuts required
- Unique mounting system provides unsurpassed rigidity and strength during hard impacts
- Mounted with massive grade 8 and factory sized grade 10.9 metric hardware and ultra thick washers
- 0° offset outer tube provides a superb entry step for passengers to enter the cab
- Sold as a pair (2)
- built to order
