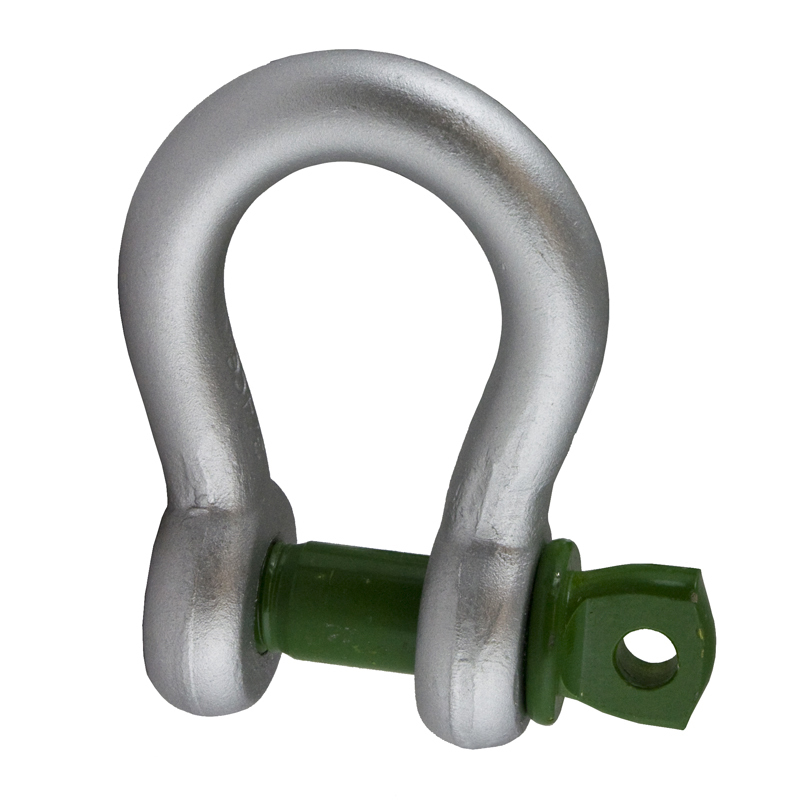

Van Beest 3/4" Screw Pin Shackle
SKU 00019
$30.00
4 available
1
Product Details
Brand:
Van Beest
Specifications
1/2" | 5/8" | 3/4" | 7/8" | 1" | |
Weight | 0.80 lbs (0.36kg) | 0.40 lbs (0.63kg) | 2.20 lbs (1kg) | 3.30 lbs (1.5kg) | 4.96 lbs (2.2 kg) |
Breaking Strength | 26,000 lbs (11,790kg) | 42,900 lbs (19,460kg) | 62,000 lbs (28,120kg) | 85,800 lbs (38,920kg) | 112,200 lbs (50,890kg) |
Bow Diameter | 1/2" (13mm) | 5/8" (16mm) | 3/4" (19mm) | 7/8" (22mm) | 1" (25 mm) |
Pin Diameter | 5/8" (16 mm) | 3/4" (19mm) | 7/8" (22mm) | 1" (25mm) | 1-1/8" (28 mm) |
Highlights
- Shackle type: green screw pin anchor bow shackle
- Material: high tensile steel, Grade 6, quenched & tempered
- Safety Factor: MBS equals 6 x WLL
- Working load limit (WLL) permanently marked on every shackle
- Meets performance requirements US Fed. Spec. RR-C-271 Type IVA Class 2, Gr. A
- Finish: hot dipped galvanized
- Temperature range: -20°C up to +200°C
- Original Green Pin© by Van Beest - Netherlands
Van Beest manufactures high quality, high tensile shackles in its production facility in Sliedrecht, the Netherlands. It is a genuine, made in Holland product. They brand these products as Green Pin®. Van Beest Green Pin® shackles can be identified by the green colored pin and the marking on the shackle body and pin. Green Pin® and the color green applied to the pin are both registered trade marks of Van Beest.
